KDD 2022

Graph Rationalization with Environment-based Augmentations

Gang Liu, Tong Zhao, Jiaxin Xu, Tengfei Luo, Meng Jiang

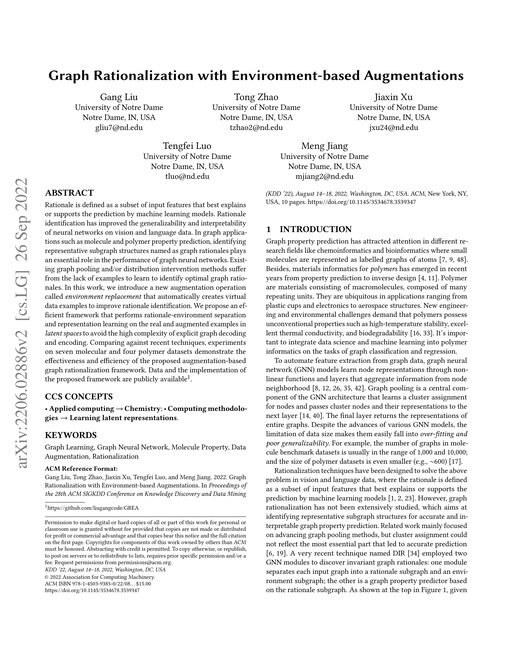

Main figure for Graph Rationalization with Environment-based Augmentations

Abstract

Rationale is defined as a subset of input features that best explains or supports the prediction by machine learning models. Rationale identification has improved the generalizability and interpretability of neural networks on vision and language data. In graph applications such as molecule and polymer property prediction, identifying representative subgraph structures named as graph rationales plays an essential role in the performance of graph neural networks. Existing graph pooling and/or distribution intervention methods suffer from the lack of examples to learn to identify optimal graph rationales. In this work, we introduce a new augmentation operation called environment replacement that automatically creates virtual data examples to improve rationale identification. We propose an efficient framework that performs rationale-environment separation and representation learning on the real and augmented examples in latent spaces to avoid the high complexity of explicit graph decoding and encoding. Comparing against recent techniques, experiments on seven molecular and four polymer datasets demonstrate the effectiveness and efficiency of the proposed augmentation-based graph rationalization framework. Data and the implementation of the proposed framework are publicly available.

Proposed method: GREA

Benchmark Results

Tested on 1 dataset 1 baseline value reported too low

Tables show presented results in global context (best 3 papers + GCN + MLP).

OGB

ogbg-molhiv

Global leaderboard →

Default metric is ROC-AUC. The paper reports 8 values on ROC-AUC and 8 values on AUC .

#ModelROC-AUC ↑ defaultAUC ↑Paper
1
Multi-RF Fusion with Multi-GNN Blending
0.8476 ± 0.0002
—
2
HyperFusion
0.8475 ± 0.0003
—
3
PAS+FPs
0.8420 ± 0.0015
—
9
GatedGCN
0.8090 ± 0.0160
—
50
GREA
0.7932 ± 0.0092
0.7932 ± 0.0092
AUC 0.7932 ± 0.0092
This paper
109
GIN
0.7780 ± 0.0182
—
133
SelfAttnPool
0.7733 ± 0.0187
0.7733 ± 0.0187
AUC 0.7733 ± 0.0187
This paper
152
DIR
0.7705
best reported
0.7533 ± 0.0117
AUC 0.7533 ± 0.0117
paper 0.7466 ±0.0093
paper 0.7466 ±0.0093 Δ at pub 0.0239 Δ today 0.0239
155
IRM
0.7702 ±0.0107
0.7817 ± 0.0120
AUC 0.7817 ± 0.0120
paper 0.7702 ±0.0107

Improvement within reported uncertainty; not highlighted.

paper 0.7702 ±0.0107 Δ at pub 0.0256
211
OOD-GNN
0.7580 ± 0.0176
0.7799 ± 0.0078
AUC 0.7799 ± 0.0078
This paper
231
U-NetsPool
0.7527 ± 0.0104
0.7527 ± 0.0104
AUC 0.7527 ± 0.0104
This paper
242
DIR+RepAug
0.7494 ± 0.0225
0.7494 ± 0.0225
AUC 0.7494 ± 0.0225
This paper
282
StableGNN
0.7218 ± 0.0099
0.7218 ± 0.0099
AUC 0.7218 ± 0.0099
This paper
SOTA performance (not significantly different from the best) Proposed method (this paper) Baseline / comparison (this paper) Global context (other papers) Best at pub — reported result worse than the best known when published (best reported in green)
