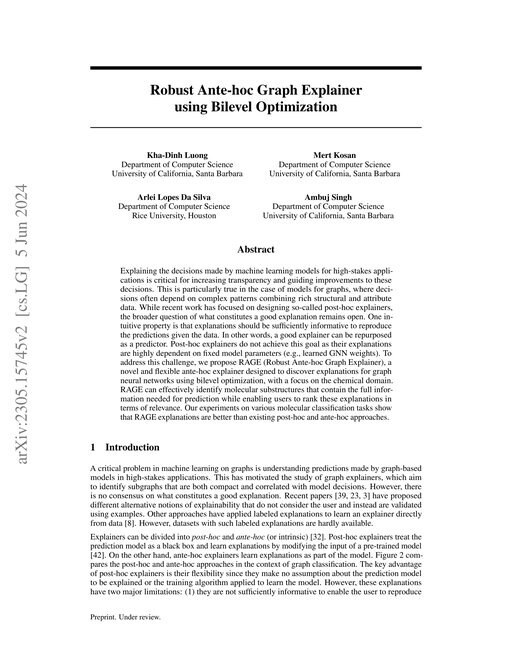

Robust Ante-hoc Graph Explainer using Bilevel Optimization
Abstract
Explaining the decisions made by machine learning models for high-stakes applications is critical for increasing transparency and guiding improvements to these decisions. This is particularly true in the case of models for graphs, where decisions often depend on complex patterns combining rich structural and attribute data. While recent work has focused on designing so-called post-hoc explainers, the broader question of what constitutes a good explanation remains open. One intuitive property is that explanations should be sufficiently informative to reproduce the predictions given the data. In other words, a good explainer can be repurposed as a predictor. Post-hoc explainers do not achieve this goal as their explanations are highly dependent on fixed model parameters (e.g., learned GNN weights). To address this challenge, we propose RAGE (Robust Ante-hoc Graph Explainer), a novel and flexible ante-hoc explainer designed to discover explanations for graph neural networks using bilevel optimization, with a focus on the chemical domain. RAGE can effectively identify molecular substructures that contain the full information needed for prediction while enabling users to rank these explanations in terms of relevance. Our experiments on various molecular classification tasks show that RAGE explanations are better than existing post-hoc and ante-hoc approaches.
Benchmark Results
Tested on 4 datasets 8 baseline values reported too low
Tables show presented results in global context (best 3 papers + GCN + MLP).
MoleculeNet
| # | Model | ROC-AUC ↑ | Paper |
|---|---|---|---|
| 1 | HIMP | 0.8740
±0.0050 | |
| 2 | GINE w/ VN | 0.8720
±0.0030 | |
| 3 | NaiveGINe+ K=3 w/ VN | 0.8700
±0.0040 | |
| 14 | GCN | 0.8400
±0.0040 best reported | best at pub: Graph convolutions that can finally model local structure (2020) |
| 24 | GIN | 0.8290
±0.0069 best reported | |
| 135 | GraphSAGE | 0.7744
±0.0038 | |
| 144 | GMT | 0.7730
±0.0059 best reported | best at pub: Accurate Learning of Graph Representations with Graph Multiset Pooling (ICLR 2021) |
| 245 | RAGE | 0.7460
±0.0070 | This paper |
| 265 | GAT | 0.7400
±0.0090 | This paper |
| 285 | GSAT | 0.7290
±0.0090 | This paper |
| 295 | VIB-GSL | 0.7150
±0.0490 | This paper |
| 297 | Dir-GNN | 0.7080
±0.0080 | This paper |
| # | Model | ROC-AUC ↑ | Paper |
|---|---|---|---|
| 1 | MAGPrompt+ | 0.9432
±0.0238 | |
| 2 | CamS-LLaMA | 0.9420 | |
| 3 | SE(3)-I MPPH | 0.9400
±0.0210 | |
| 34 | GIN | 0.8875
±0.0049 best reported | |
| 38 | GCN | 0.8810
±0.0360 best reported | best at pub: Motif-based Graph Representation Learning with Application to Chemical Molecules (2022) |
| 57 | GraphSAGE | 0.8304
±0.0038 | |
| 114 | GSAT | 0.7155
±0.0156 best reported | |
| 210 | GAT | 0.6776 best reported | |
| 221 | VIB-GSL | 0.6750
±0.0190 | This paper |
| 232 | RAGE | 0.6710
±0.0210 | This paper |
| 258 | GMT | 0.6580
±0.0190 | This paper |
| 279 | Dir-GNN | 0.6440
±0.0290 | This paper |
| # | Model | ROC-AUC ↑ | Paper |
|---|---|---|---|
| 1 | SE(3)-I MPPH | 0.9930
±0.0040 | |
| 2 | KA-GCN | 0.9920
±0.0050 | |
| 3 | KA-GAT | 0.9910
±0.0050 | |
| 19 | GCN | 0.9130
±0.0170 best reported | best at pub: OOD-GNN: Out-of-Distribution Generalized Graph Neural Network (2021) Difference within reported uncertainty; not counted as underperformance. |
| 36 | GIN | 0.8810
±0.0250 best reported | best at pub: OOD-GNN: Out-of-Distribution Generalized Graph Neural Network (2021) Difference within reported uncertainty; not counted as underperformance. |
| 44 | GSAT | 0.8750
±0.0270 | This paper |
| 53 | RAGE | 0.8580
±0.0420 | This paper |
| 66 | GAT | 0.8260
±0.0450 | This paper |
| 72 | GMT | 0.8230
±0.0170 | This paper |
| 95 | Dir-GNN | 0.7950
±0.0600 | This paper |
| 102 | VIB-GSL | 0.7880
±0.0200 | This paper |
| 238 | GraphSAGE | 0.5580
±0.0620 |
| # | Model | ROC-AUC ↑ | Paper |
|---|---|---|---|
| 1 | GeomGCL | 0.7630 | |
| 2 | LiGhT DeepGPT | 0.7570
±0.0110 | |
| 3 | CoMPT | 0.7550 | |
| 14 | GCN | 0.7350
±0.0020 best reported | best at pub: Graph convolutions that can finally model local structure (2020) |
| 32 | GIN | 0.7095
±0.0027 best reported | best at pub: OOD-GNN: Out-of-Distribution Generalized Graph Neural Network (2021) |
| 62 | GraphSAGE | 0.6775
±0.0041 | |
| 157 | GAT | 0.6320
±0.0080 | This paper |
| 184 | RAGE | 0.6210
±0.0090 | This paper |
| 185 | GMT | 0.6200
±0.0070 | This paper |
| 190 | GSAT | 0.6140
±0.0080 | This paper |
| 191 | Dir-GNN | 0.6120
±0.0060 | This paper |
| 193 | VIB-GSL | 0.6110
±0.0050 | This paper |
